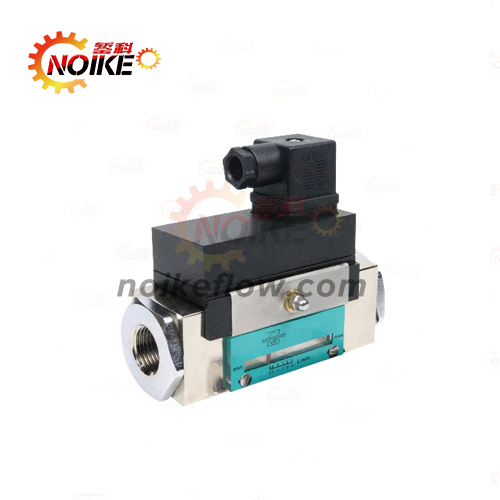

Pointer piston flow switch NC80C

品牌：上海錾科自动化公司
型号：NC80C
产品描述：Principle CharacteristicsPointer piston flow switch NC80C contains a magnetic pi...

Principle Characteristics

Pointer piston flow switch NC80C contains a magnetic piston support- ed by a precision spring that pushes the piston backwards and triggers an external microswitch or reed tube. Optional pointer flowmeter head displays instantaneous flow rate.

Internal all-metal structure, optional pointer flow switch, switch with high reliability and repeatability, mechanical part and electronic part completely isolated, high pressure resistance, normally open output,

large contact capacity, temperature and pressure compensation function.

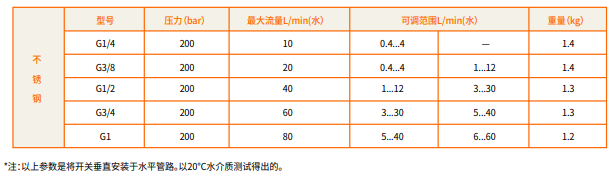

Technical Parameters

Repeatability: ≤±3% range

Pressure: 200bar (stainless steel), 100bar (brass)

Output mode: normally open and closed

Switching capacity: 240Vac/110Vdc, 1.5A

Ambient temperature: -20... 70°C

Material：

Electronic enclosure: PC

Switch housing: stainless steel/brass plated with nickel

Spring: stainless steel

Protection level: IP65
