Adjustable temperature switch NC10 series

Brand：ZANKE
Model：NC10
Description：Principles CharacteristicsAdjustable liquid expansion temperature switch, compac
Online Consultation

Principles Characteristics

Adjustable liquid expansion temperature switch, compact IP40 protection design, micro control switch that can be rotated. A reliable temperature control with a setting range up to 210°C. Provide complete temperature switch package.

High precision

simple design

low lag

easy to install

Temperature switches NC10can meet the different requirements for temperature control in hydraulic, lubricating and traditional systems. They are used to detect whether the temperature exceeds the maximum or minimum limit

Technical Parameters

adjustable range hysteresis Maximum temperature Serial number

0-90 4±1K 130 90

40-210 9±2K 250 210

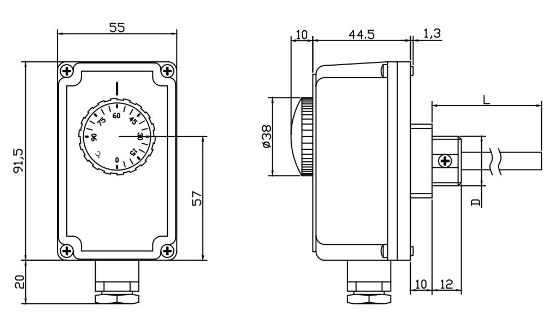

Size Chart（mm）
