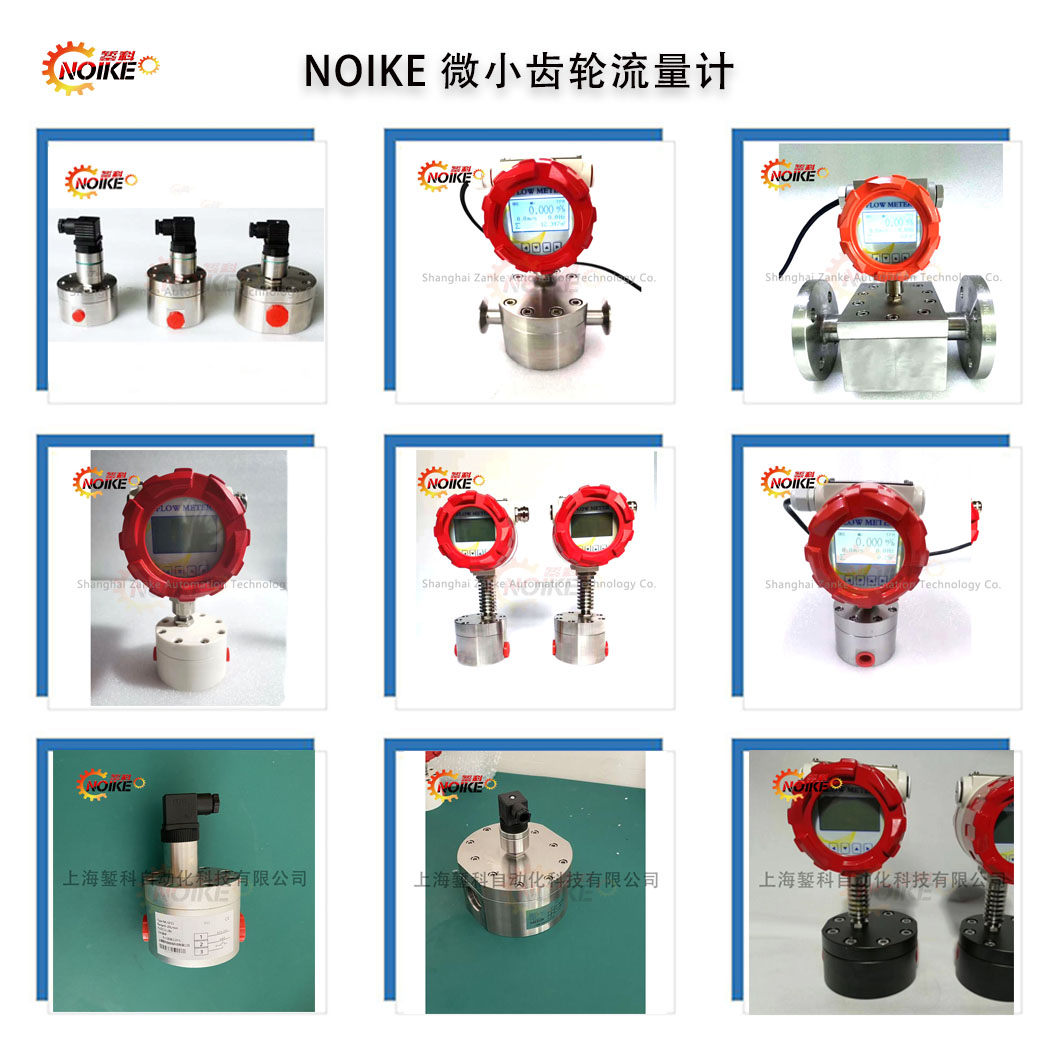

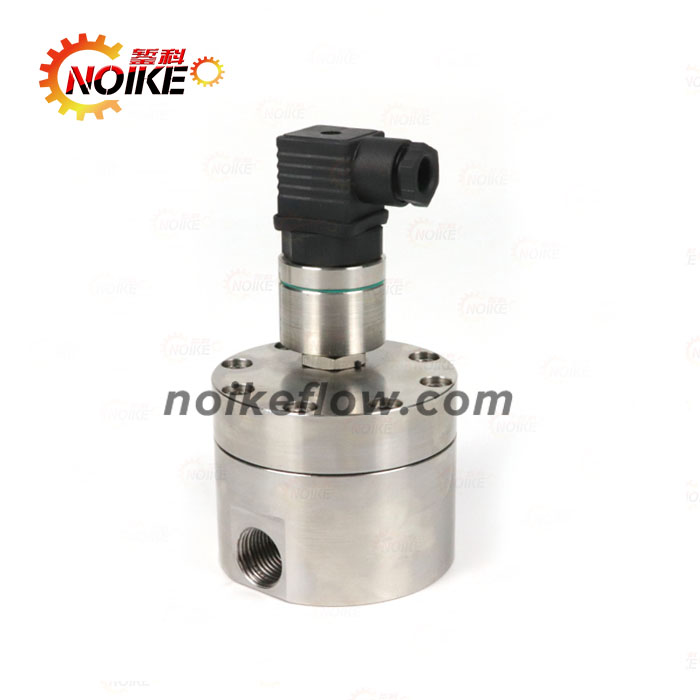

Oval Gear Flowmeter NKFGF

Brand：ZANKE
Model：
Description：Product Overview: The gear flow sensor has built-in double gears to operate, and calculates the volume of the medium through the high-precision gear volume to achieve the measurement of micro fluid media. It is a new type of volumetric flow
Online Consultation

Product Overview:

The gear flow sensor has built-in double gears to operate, and calculates the volume of the medium through the high-precision gear volume to achieve the measurement of micro fluid media. It is a new type of volumetric flow sensor, used for precise continuous or discontinuous measurement of the flow or instantaneous flow of liquid in the pipeline.

Technical Parameters:

△Measuring range: Measuring range: 0.005～330L/min (support customized range)

△Output signal: pulse, 4-20mA, PNP/NPN

△Measurement accuracy: 0.5%F.S

△Repeatability: 0.1%F.S

△Power supply: 16～30VDC

△ Pressure resistance: aluminum (150bar) stainless steel (400bar) PP (pressure resistance 50bar)

△Material: Shell: aluminum, stainless steel, PP

△Display: stainless steel

Technical Parameters:

Following are the benefits or advantages of Oval Gear Flowmeter:

➨It delivers higher measurement accuracy (about 0.25%).

➨It is suitable for high viscosity media.

➨It operates in both the directions viz. forward and reverse.

➨Inlet and outlet sections are not required as there is no flow profile.

➨It does not require any external power supply.

➨It can be used for high temperatures (upto 300oC) and pressures (upto 10 MPa).

➨Wide range of materials are used for its construction.

Applications:

mdash;Resin and glue measurement

mdash;Hydraulic oil, lubricating oil, grease measurement, fuel oil measurement, ink, asphalt measurement

mdash;Liquid nitrogen, freezing liquid, solvent measurement edible oil, fish oil and food filling measurement

mdash;Chemical and anti-corrosion requirements fluid measurement fluid quantitative control system

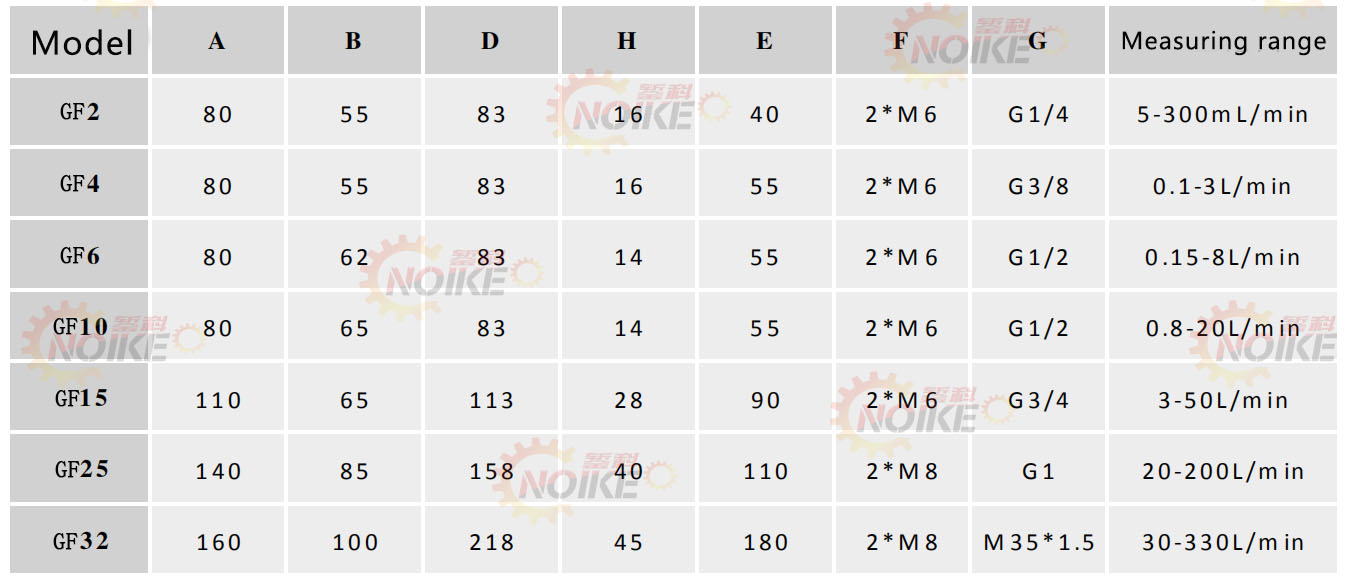

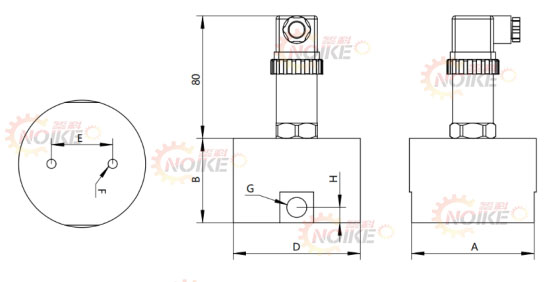

Models:

For more product detailsand purchases, please contact E-mail:noike009@foxmail.com / noike009@163.com
